תיאור המוצר

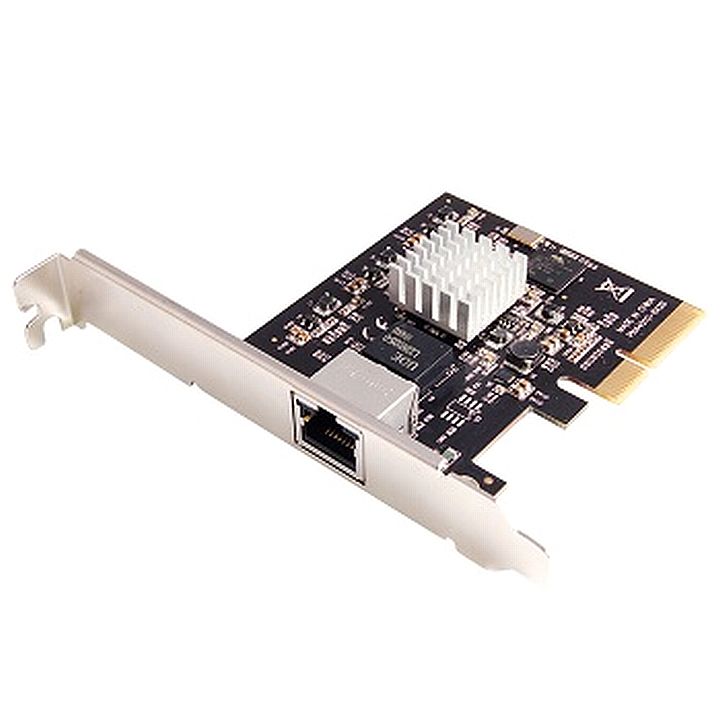

This card is a Multi-Gigabit network adapter that’s runs on a high speed PCIe x4 host but interface.
This card hosts the Tehuti new 3rd generation TN4010 controller, and optimized 10 Gigabit Ethernet MAC designed for low-power, low-cost, single-port connectivity required by Application Servers and Workstations. The TN4010 MAC is paired with Marvell Alaska 88X3310P transceiver, a low-power, high-performance 10 Gigabit Ethernet PHY, to enable five-speed connectivity (10GBase-T, 5GBase-T 2.5GBase-T 1000Base-T, and 100Base-TX) over low-cost standard CAT-6a Ethernet cabling, up to 100m (Cat-5e and CAT-6 are supported compliant to Link Segment specifications).
This combination creates a new gateway to cost-conscious consumer applications, as well as to intensive data environments.
Features
Supports 10G/5G/2.5G/1G/100M
Runs up to 10G at 100m Cat 6A cable and 5G at 100m Cat 5e/Cat 6 cable
Backward compatibility with 1000Base-T, 100Base-T Networks
PCI Express Gen-2 x4 Host Bus interface
EEE (Energy Efficient Ethernet)
9K Jumbo Frames
IP, TCP, UDP checksum offloading
IEEE 802.1Q Tagged VLAN
Virtual NIC support
Reduced CPU utilization and improved throughput
| ספק / יצרן: |
ST-LAB |
| דגם: |
N-480 |
