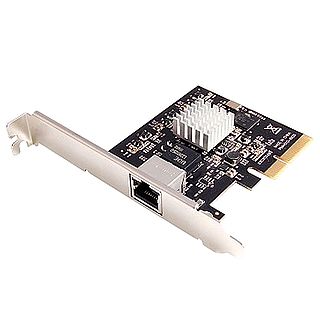

This card is a Multi-Gigabit network adapter that’s runs on a high speed PCIe x4 host but interface.

This card hosts the Tehuti new 3rd generation TN4010 controller, and optimized 10 Gigabit Ethernet MAC designed for low-power, low-cost, single-port connectivity required by Application Servers and Workstations. The TN4010 MAC is paired with Marvell Alaska 88X3310P transceiver, a low-power, high-performance 10 Gigabit Ethernet PHY, to enable five-speed connectivity (10GBase-T, 5GBase-T 2.5GBase-T 1000Base-T, and 100Base-TX) over low-cost  standard CAT-6a Ethernet cabling, up to 100m (Cat-5e and CAT-6 are supported compliant to Link Segment specifications).

This combination creates a new gateway to cost-conscious consumer applications, as well as to intensive data environments.

Features

Supports 10G/5G/2.5G/1G/100M

Runs up to 10G at 100m Cat 6A cable and 5G at 100m Cat 5e/Cat 6 cable

Backward compatibility with 1000Base-T, 100Base-T Networks

PCI Express Gen-2 x4 Host Bus interface

EEE (Energy Efficient Ethernet)

9K Jumbo Frames

IP, TCP, UDP checksum offloading

IEEE 802.1Q Tagged VLAN

Virtual NIC support

Reduced CPU utilization and improved throughput
