Feature
Fully compliant with PCI Express Base Specification Revision 2.0
Single-lane (x1) PCI Express throughput rates up to 5 Gbps
sCompliant with Universal Serial Bus 3.0 specification Revision 1.0
Supports simultaneous operation of multiple USB 3.0, USB 2.0 and USB 1.1 devices
Supports the following speed data rates as follows:
Low-speed (1.5Mbps) / Full-speed (12Mbps) / High-speed (480Mbps) / Super-speed (5Gbps)
Compliant with Intel’s eXtensible Host Controller Interface (xHCI) Specification Revision 0.96
Built-in over current protection on each USB port
Add up two USB 3.0 Type-A ports (model dependent) / two USB 3.0 Type-C ports (model dependent)
Built-in 4-pin power connector for receiving extra power supply from system
Hot-swapping feature allows you to connect/disconnect devices without powering down the system
System Requirements
Windows® 7/8/8.1/10 (32/64 bit)
One available PCI Express slot (x1, x4, x8, or x16)
Package Contents

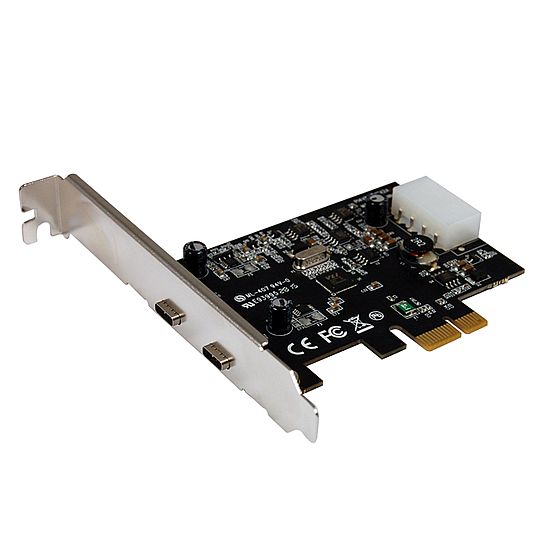

1 x PCIe USB 3.1 Gen1 Host Adapter
1 x Driver CD
1 x User Manual
