Features
Fully compliant with PCI Express Base Specification Revision 2.0
Support USB Battery Charging Specification Revision 1.2
Single-lane (x1) PCI Express throughput rates up to 5 Gbps
Compliant with Universal Serial Bus 3.0 specification Revision 1.0
Supports simultaneous operation of multiple USB 3.0, USB 2.0 and USB 1.1 devices
Supports the following speed data rates as follows:
Low-speed (1.5Mbps) / Full-speed (12Mbps) / High-speed (480Mbps) / Super-speed (5Gbps)
Compliant with Intel’s eXtensible Host Controller Interface (xHCI) Specification Revision 1.0
Supports 4 downstream ports for all speeds
Built-in 4-pin power connector for receiving extra power supply from system
Supports USB Battery Charging Specification Revision 1.2
Hot-swapping feature allows you to connect/disconnect devices without powering down the system
System Requirements
Windows® XP/Vista/7/8/8.1 (32/64 bit); Linux 2.6.31 or later
One available PCI Express slot (Recommend PCI Express 2.0)
Package Contents

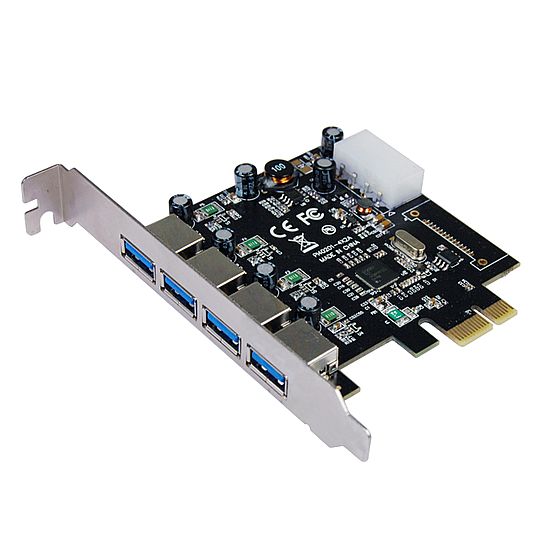

1 x USB 3.0 4-Port PCI Express Card
1 x Driver CD
1 x User Manual
Note: Contents may vary depending on country/market.
